Wirtgen
280 SM
Wirtgen
280 SM
In the extraction os primary resources by open cast mining, the Wirtgen 280 SM combines the highest productivity and maximum purity of the material mined, with the reduction of production costs to a minimum.
The 280 SM is extremely versatile when it comes to offloading the mined materials - onto dumpers, sidecast or behind the machine. Easy to operator, the servicing and maintenance are very fast and simple. Because in a open cast ming operation, time is money.
Highlights:
- All rounder for all rock hardness and application
- High productivity; advanced engine technology
- High comfort and safety
- Precise levelling with Level ProActive
Power
1.065 hp
Operating weight
116.110 kg
Cutting width
2.750 mm
Cutting depth
0 - 650 mm
Maximum availability. Maximum productivity. 100 per cent mining.

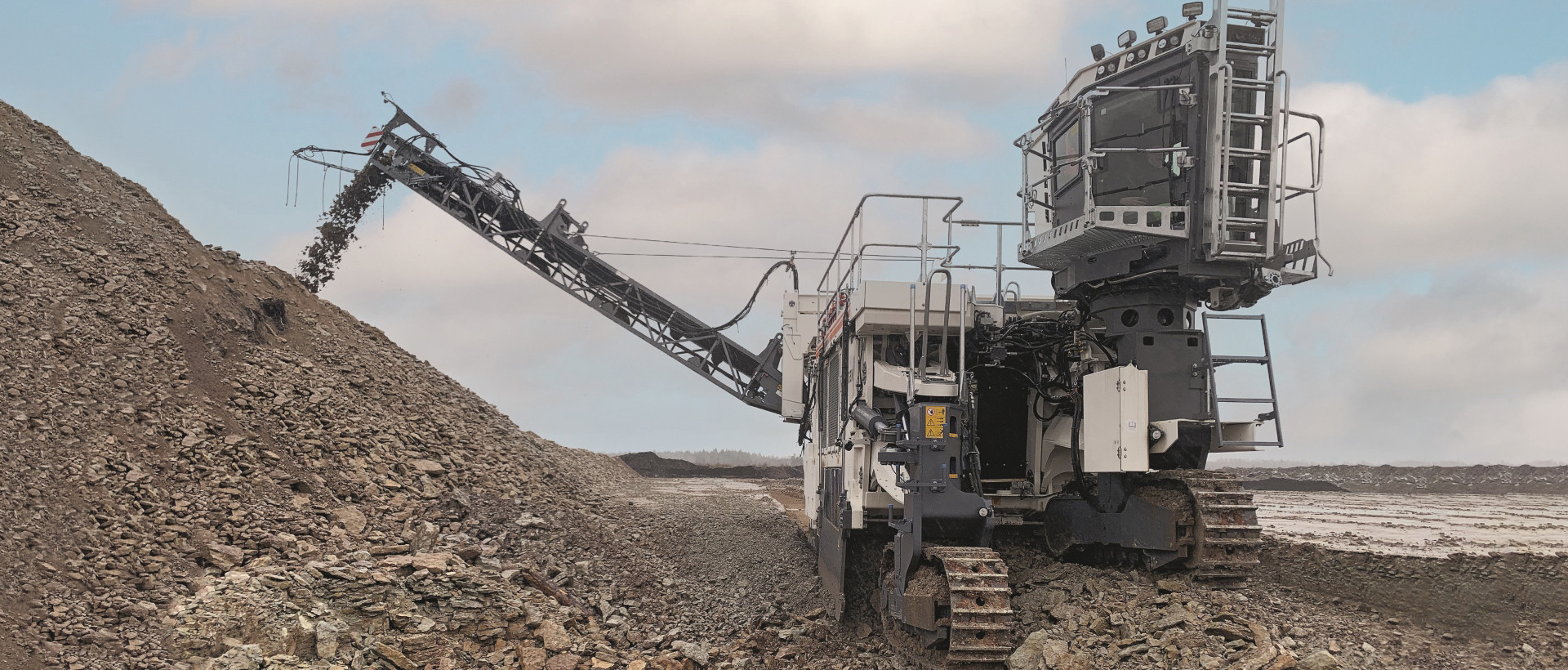

- High-performance surface miners for reliable, selective extraction of raw materials by direct loading, sidecasting, or cut-to-ground.
- Raw materials are extracted and crushed in situ in purest quality in a single operation – without drilling and blasting, and with minimal environmental impact.
- The 2,750 mm cutting drum unit with a cutting depth of up to 650 mm is precisely adaptable to each specific application and achieves outstanding cutting performance with minimal cutting tool wear.

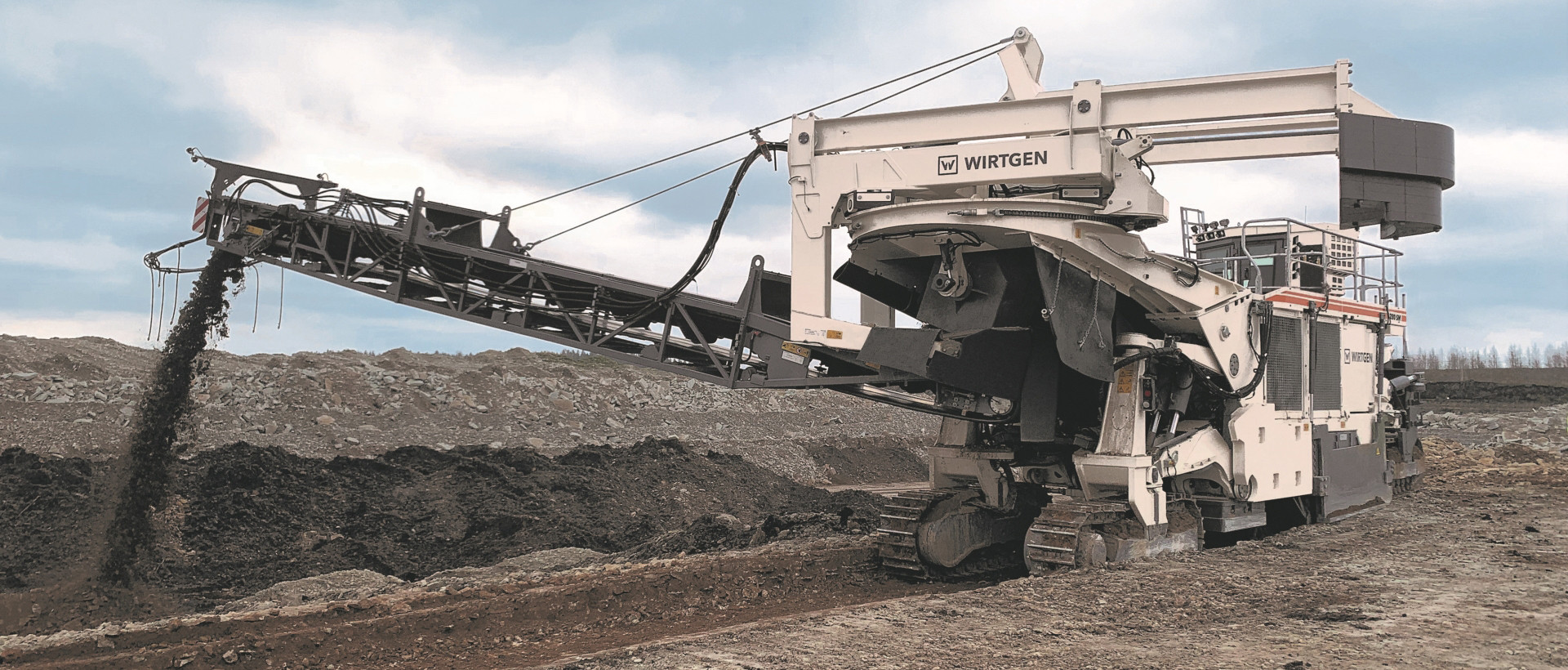

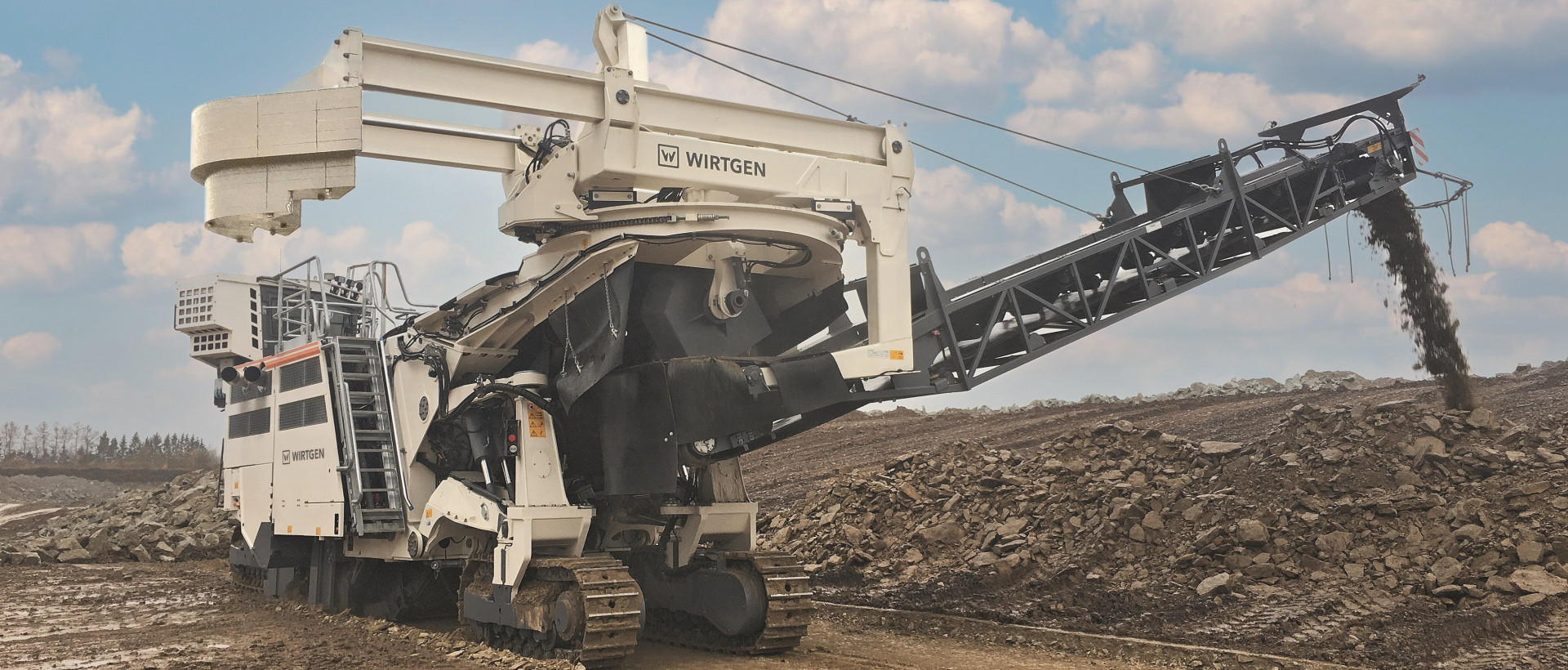

- The powerful rear loading conveyor with a movable counterweight can be elevated and slewed to ensure a perfect flow of materials and makes it possible to load trucks with payloads of up to 100 tons.
- Its air-conditioned and soundproofed operator’s cabin with all-round glazing is swivel-mounted on the front chassis column and provides a fatigue-free and productive working environment.
