Wirtgen
SP 25

Wirtgen

SP 25

SP 25

The SP 25 is Wirtgen's new generation slipform paver. With a compact design, it is a very versatile machine, able to respond to different types of concrete applications, guaranteeing the quality of the final product.

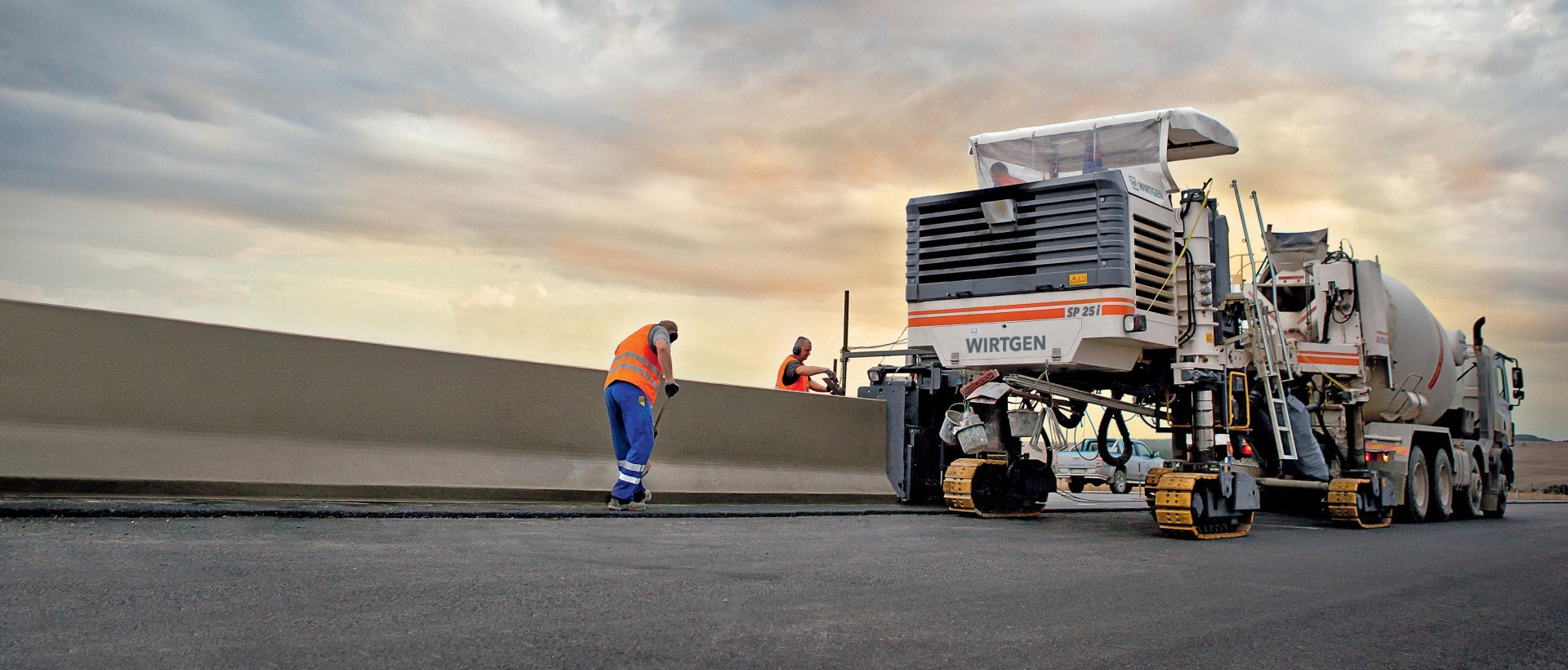

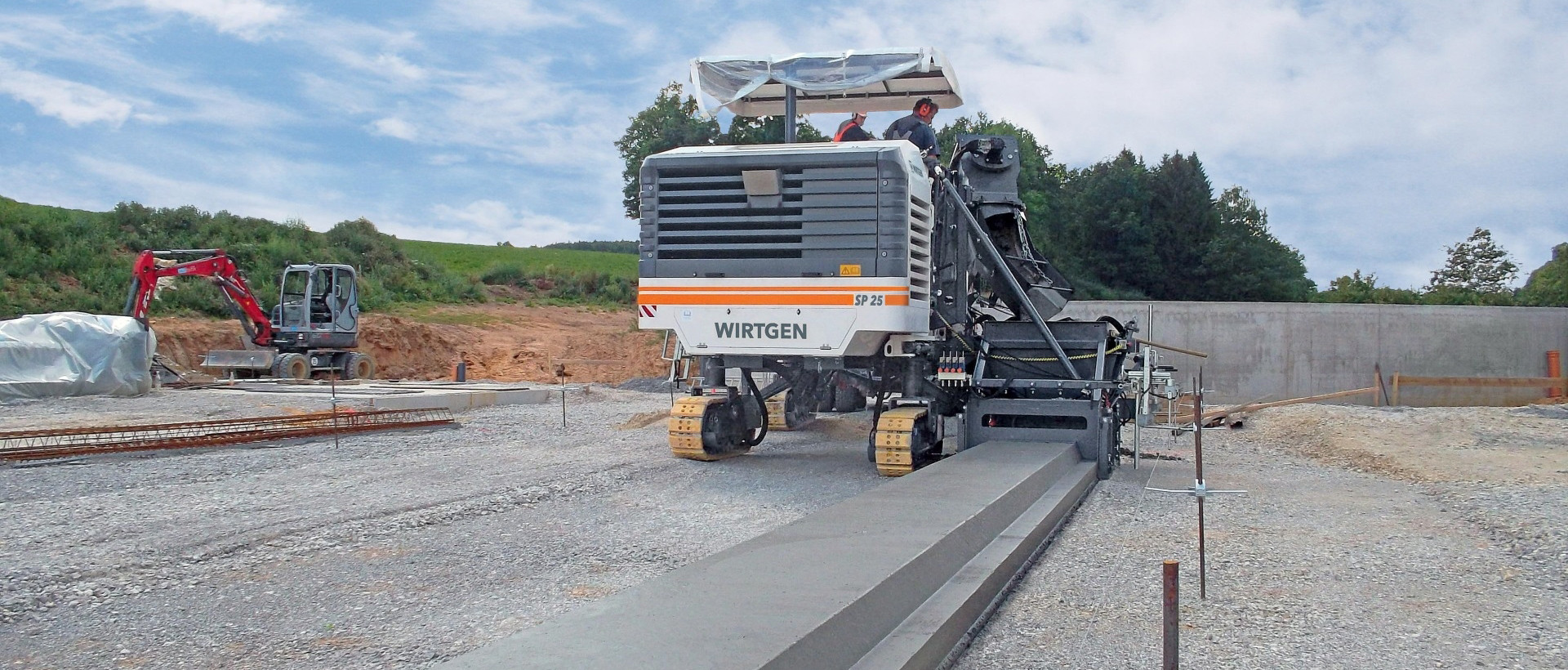

With an "offset" configuration, the SP25 produces monolithic concrete profiles, such as concrete safety barriers, curbs and gutters.

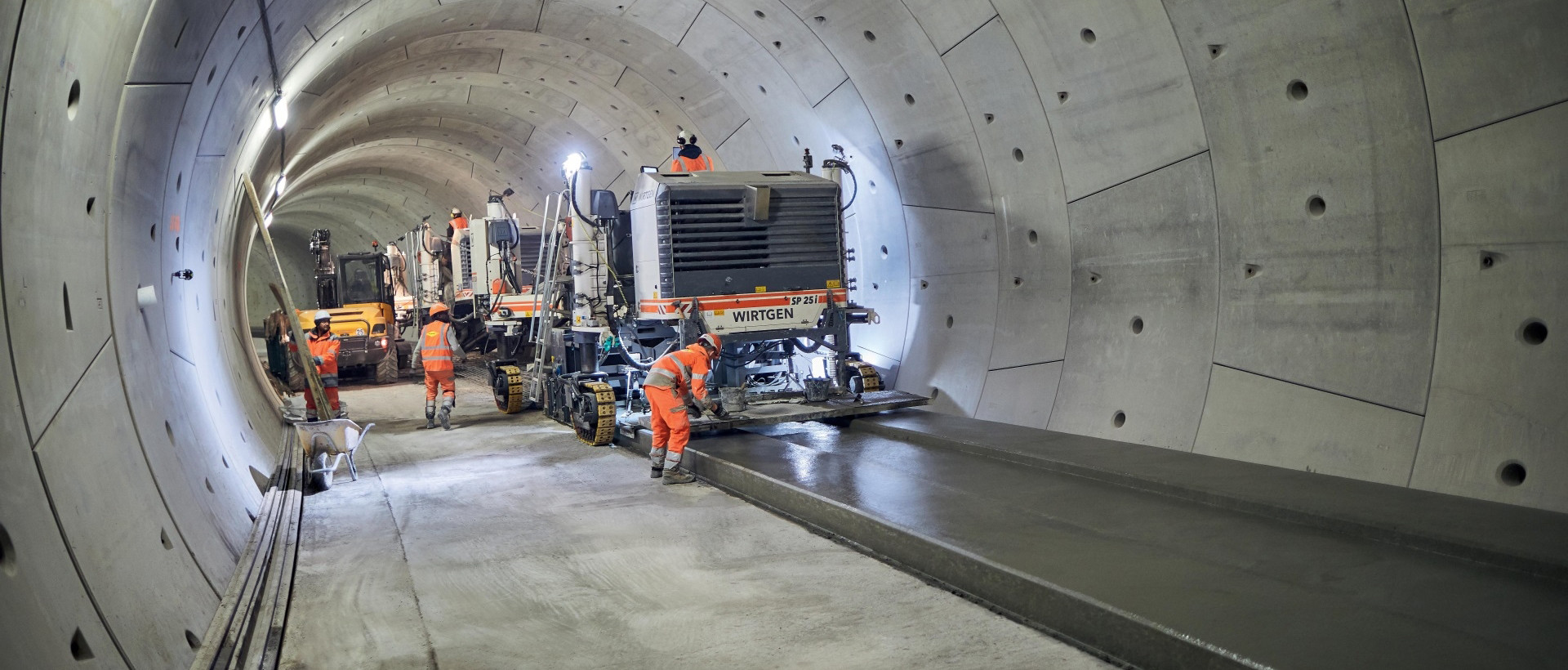

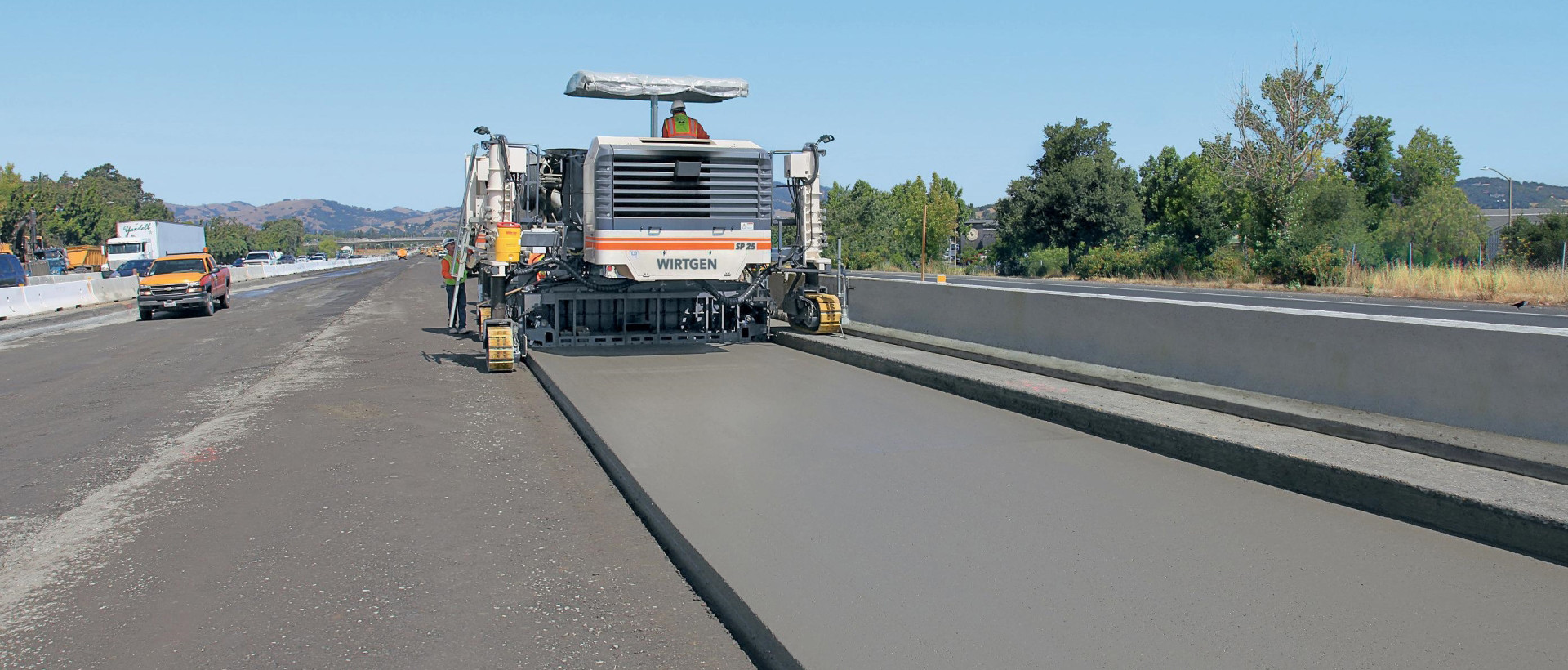

In addition to a wide variety of solutions for finishing "offset" profiles, the SP 25 responds with the same efficiency in "inset" applications, which allow them to produce concrete coatings in a cost-effective way, for example for motorways, national roads, airport runways or railway lines but also for small roads, water channels, gutters, cycle paths, among others.



Highlights:

  • Molds in a wide range of different shapes and sizes for individual applications
  • Top-quality machine control system
  • Stringline-free concrete paving
  • Simple, safe and economical operations

Operating weight
13.600 - 16.100 kg

Rated power
160 cv

Max. mould width
1.000 - 3.500 mm

Concrete height
400 mm

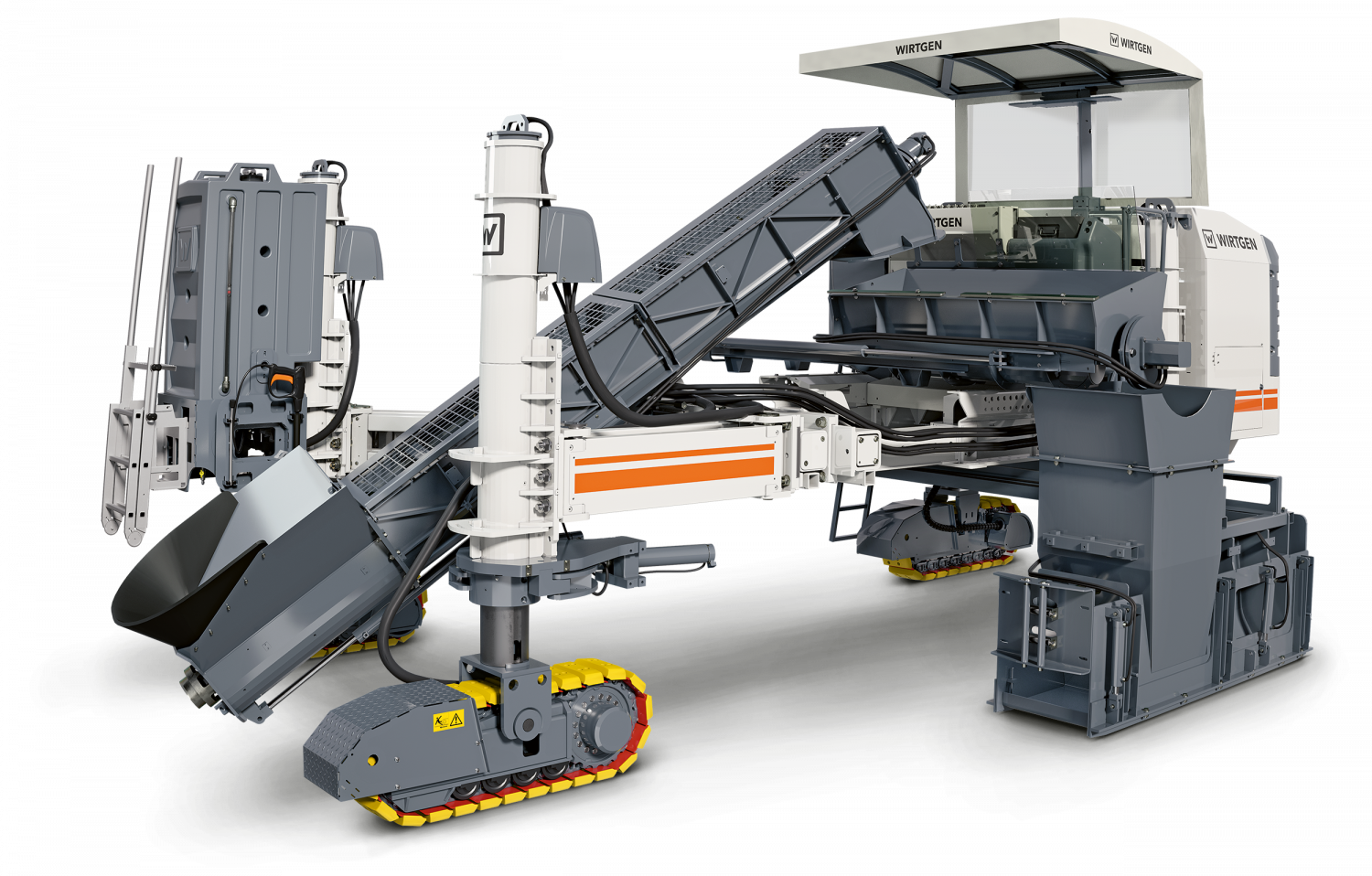

Multifunctional offset and inset slipform paver

Offset Image
  • The multifunctional slipform paver paves a wide range of monolithic profiles up to 2.0 m high
  • It can be used to easily pave concrete surfaces up to a paving width of 3.5 m using both the inset and offset methods (cannot be combined with all options)
  • One or two hydraulic parallelogram swing arms at the front and two hydraulically telescoping crawler units at the rear make it possible to pave concrete in an extremely flexible manner.
  • Intelligent, electronic steering and control concept - the machine can be driven through very tight turning angles and is highly adaptable to any building site situation
  • Autopilot - efficient, stringless machine control system
  • Adaptive electronic steering and control system for precise driving behaviour and high-precision concrete paving
  • Fully modular inset mould system
  • Highly flexible offset mould system
  • Ease of operation
  • Intelligent transport concept; compact machine dimensions
